Cleanup Audio - The Corrections List

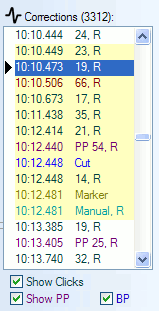

The Corrections List lists all the clicks, and potential clicks, found by scanning the album side. It also lists any cuts you may have made, any markers you have inserted, any click repairs inserted or adjusted manually and any patches you may have made.

Each entry in the list has a time stamp and then, for clicks or would-be clicks, the click width (in samples at 44100 samples per second) and the channel (Left or Right). In addition:

• Click repairs are coloured cyan.
• Potential clicks which have been identified as probable percussion bursts (and hence ignored) are marked PP, and coloured purple.
• Potential clicks which have been identified as probable horn blasts and the like are marked BP, and coloured blue (not shown in this example).
• Clicks inserted or adjusted manually are marked Manual, and shown in light cyan.
• Patches are shown in green (not shown in this example)
• Click repairs wider than 50 samples can be a cause for concern and are coloured red.
• Cuts are also coloured blue.
• Markers inserted by the user are coloured dark yellow.
• Corrections falling within the current selection are shown with a pale yellow background.
• The current cursor position in the waveform display is shown by this symbol:

The checkboxes below the list control what is displayed. Note that, to select a click repair in the waveform display, Show Clicks must be checked.

To select a correction from the list, click on it and then zoom in using the mouse wheel, the + and - keys or the zoom buttons in the toolbar. You can also use the corrections list to delete a correction - right-click in the list for more information.

TIP: to select a range of corrections, click on the first in the list and then shift-click on the last.
